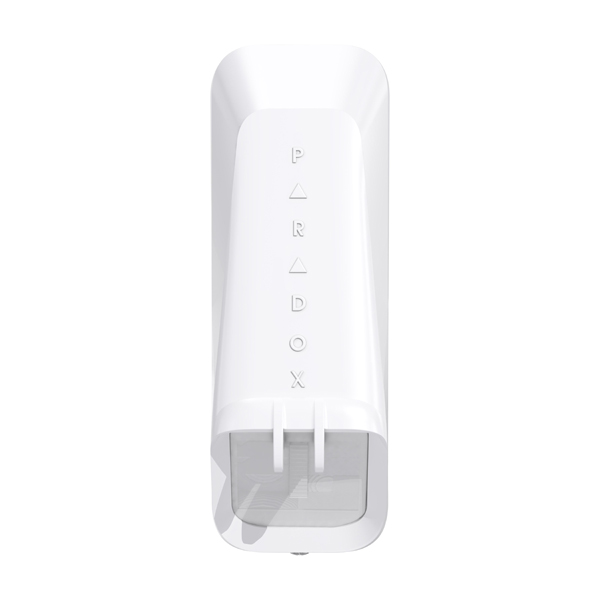

PARADOX DETECTOR / Dual NV35MX
Outdoor / indoor protection solution for windows and sliding doors
Advanced Optical and Digital Technology
Dual detectors, managed by Full Authority Digital Electronics Control (FADEC)
Patented Auto Pulse Signal Processing with Automatic Temperature
Compensation
Digital EMI / RFI interference rejection
Optical Pet discrimination geometry to support super Pet Immunity
Anti-Masking: Unique active IR detection for both blocking items up to 30 cm
in front of the detector and sprayed liquids
Ultra low power management operation with Paradox Effi+ circuit
Dual tamper detection (removal of cover or unit)
Specifications
Detection Range 2 x 3m to 12m (9.8 to 39 ft) at 2.5m height
Pet Immunity Up to 40 kg (90 lb)
Input Voltage 9 to 15 Vdc
Current Consumption Typical / Standby: 37 mA, Maximum: 80 mA
Operating Temperature -35 to 50°C (-31 to 122°F)
Dimensions 21 x 11 x 7 cm (8.2 x 4.3 x 2.7 in.)
Specifications
Detection Range Super Pet Immunity Mode: 7.5 x 2m (25 x 7 ft)
Sharp Mode (Pet Immunity off): 10 x 2m (33 x 7 ft)
Pet Immunity 50 cm (20 in.)
Input Voltage 10 to 15 Vdc
Current Consumption Typical: 15 mA, Maximum: 19.2 mA
IP Rating IP54
Operating Temperature -35 to 60º C (-31 to 140º F)
Dimensions 12.3 x 6.1 x 4.3 cm (4.8 x 2.4 x 1.7 in.
